OUAF C2M 2.7.0.3 installation on Windows64 - Part I - Download and Installation of Prerequisite Softwares

This blog is for anyone trying to install C2M or any similar OUAF product for evaluation purposes on Windows 64 OS.

I have noted down the steps that I had taken for doing an installation of C2M 2.7.0.3 product on Windows 64bit OS. Have tried to highlight issues that came up. Also have mentioned the exact paths where the application has been installed. You can use the same OS paths wherever possible. This will help you in following the steps. Alternatively, if you wish to install the application in your desired location, make appropriate modifications in the paths while following the steps.
Since there are many steps for complete installation, I have divided it into three blogs instead of one single blog.

Part I - Download of Softwares and Installation of Prerequisites

Part II - Download and Installation of C2M product
Part III - Deployment of C2M product in Weblogic using Native Installation

This blog covers steps for downloading necessary softwares and the steps for installing prerequisite software(Java, Weblogic, Oracle Database, Hibernate).

Below is how the folder structure looks after installation. Recommend you to follow this structure for ease in following installation steps and avoiding any confusion on the paths.

Following are the steps of installation:

• Downloading and installing prerequisites
• Setting System variables
• Downloading C2M product
• Installing C2M database (Demo Install)
• Installing C2M product
• Native installation on Weblogic
• IWS deployment

Downloading and installing prerequisites

Java

Download

Navigate to https://www.oracle.com/in/java/technologies/javase/javase-jdk8-downloads.html

Above link might change. Search and check for jdk 8 downloads and download appropriate version.

Supported Versions: Oracle Java SE Development Kit 1.8.0_x

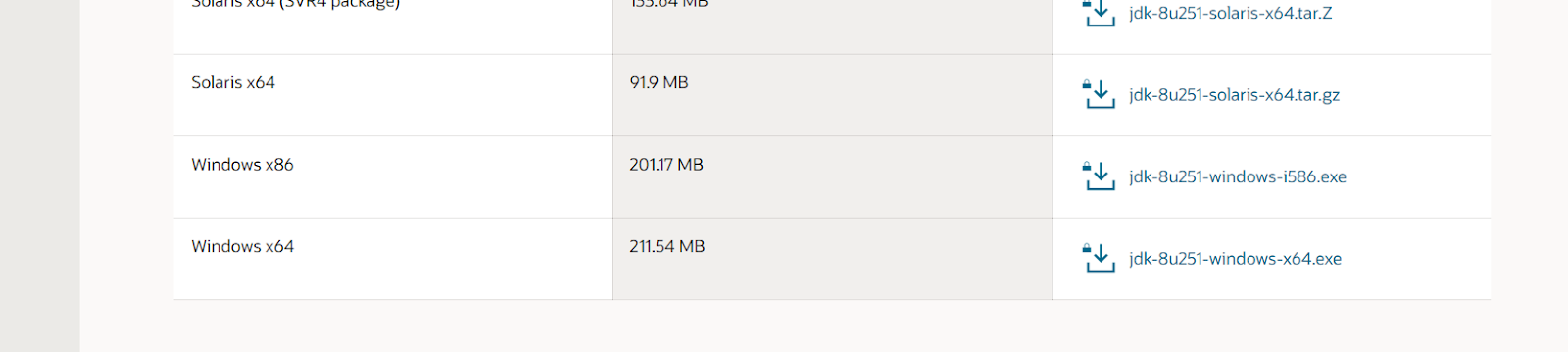

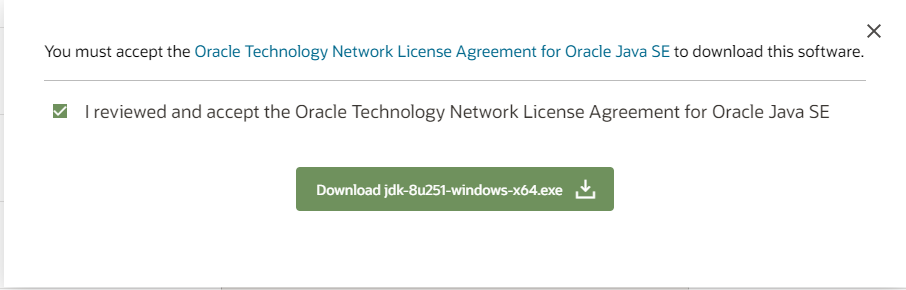

Download windows 64 option

Save the java setup file.

Installation

Once downloaded. Run the installer and install the jdk at following location

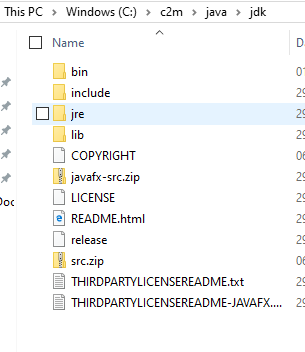

C:\c2m\java\jdk

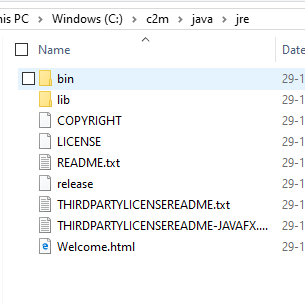

Install the jre at following location

C:\c2m\java\jre

Weblogic Server

Supported Versions: Oracle WebLogic Server 12c Release 2 (12.2.1.+) 64-bit

Download

Go to top right corner of page and click on Continue

Select platform as windows 64

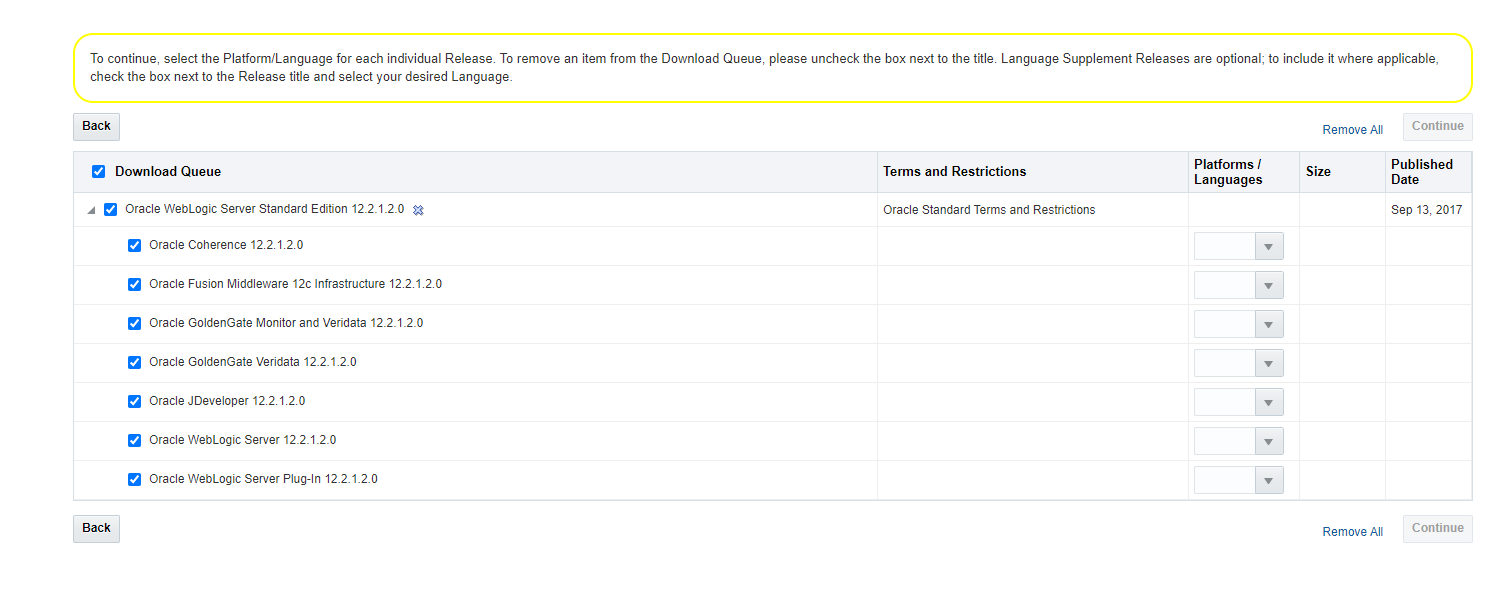

V779122-01.zip is needed for installation. Rest are optional for download.

Download all the files

Installation

Extract the files in V779122-01.zip
Open command prompt in administrator mode
Navigate to the extracted folder

Run the command java –jar fmw_12.2.1.2.0_infrastructure.jar

You might have to give full path of java pointing to the installed jdk
C:\c2m\java\jdk\bin\java –jar fmw_12.2.1.2.0_infrastructure.jar

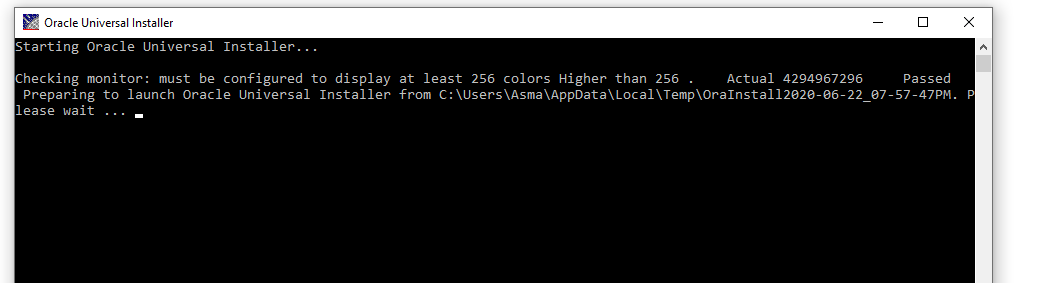

Installer screen opens up

Click on next

Click on next

Enter C:\c2m\Oracle\Middleware\Oracle_Home in the Oracle home field. You can modify the name/path if you have an existing Oracle Home.



Select Fusion Middleware Infrastructure

Click on Next

Click on Next

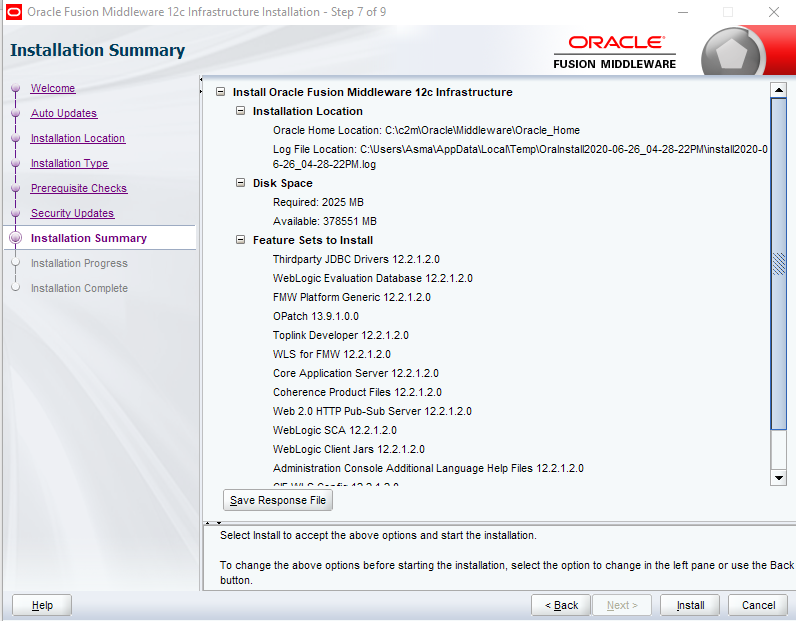

Installation summary screen comes up. Click on install. This will do the installation. After it is done. Click on finish to complete the installation.

Oracle Database

Oracle Database Server supported versions: 12.1.0.2.+, 12.2.0.1.+, 18c, 19c

Download

Go to Oracle Edelivery site. After logging in below screen is visible. Enter Oracle database 12c in search field. Select Oracle Database 12c Standard Edition 2 12.2.0.1.0

Go to top right corner of page and click on Continue

Select Operating system as Windows 64

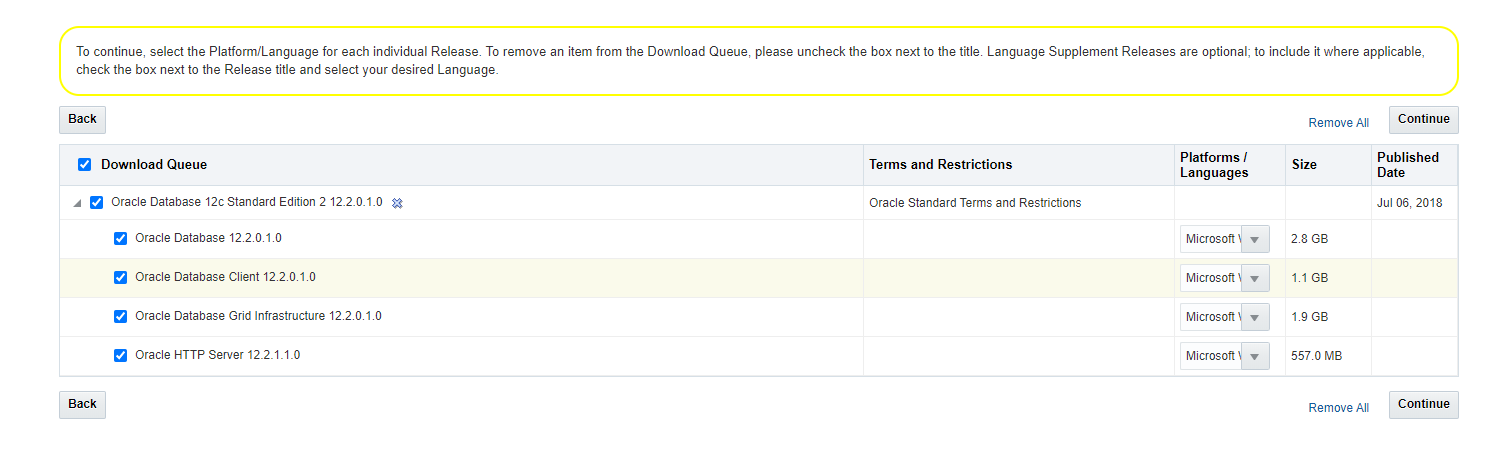

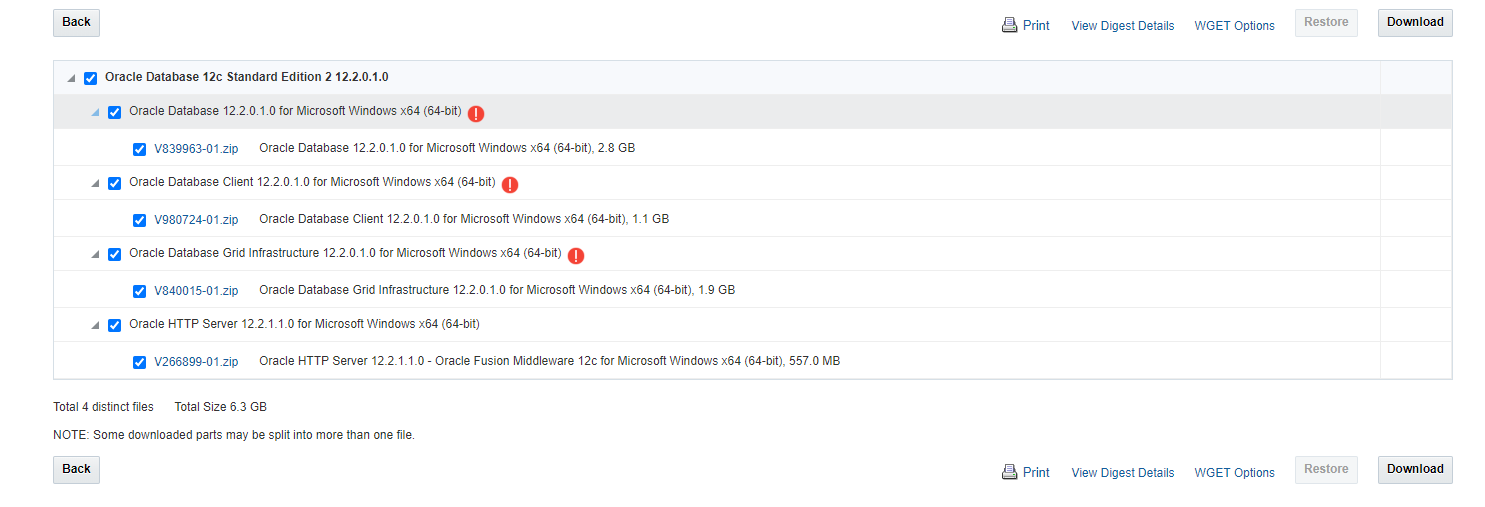

Following page opens up. Download the softwares using Oracle Download manager
Only V839963-01.zip file is needed. Rest are not needed. You can download other files as per your wish.

Installation

Extract the file V839963-01.zip

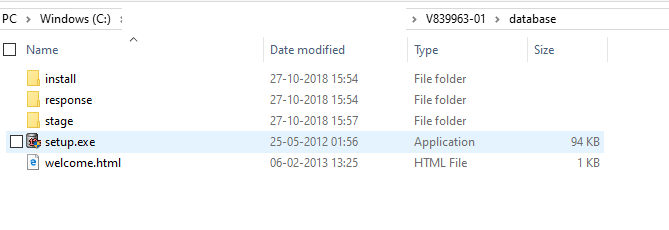

Navigate to the folder



Right click on setup.exe and ‘Run as Administrator’

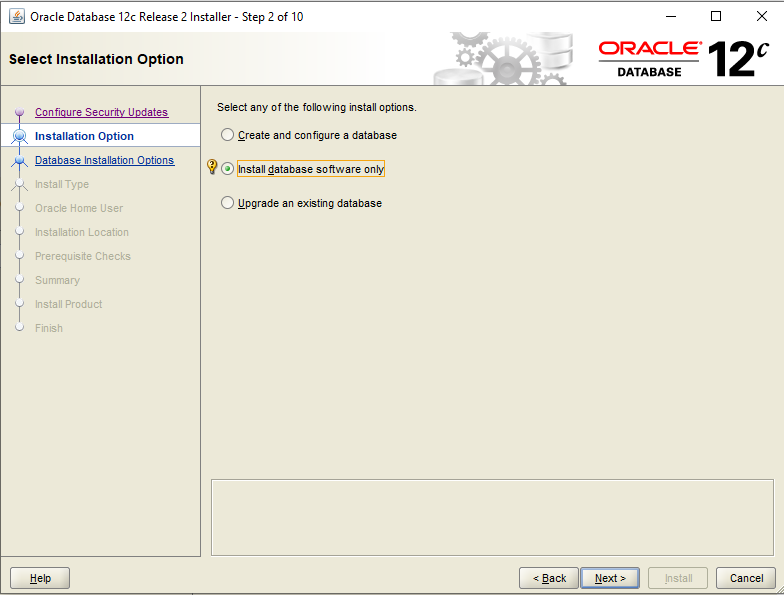

Select Install database software only

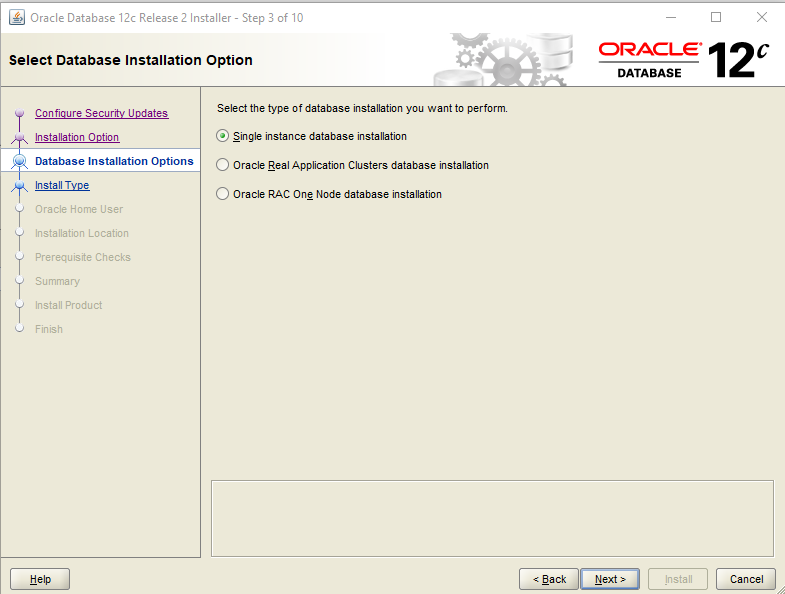

Select single instance database installation

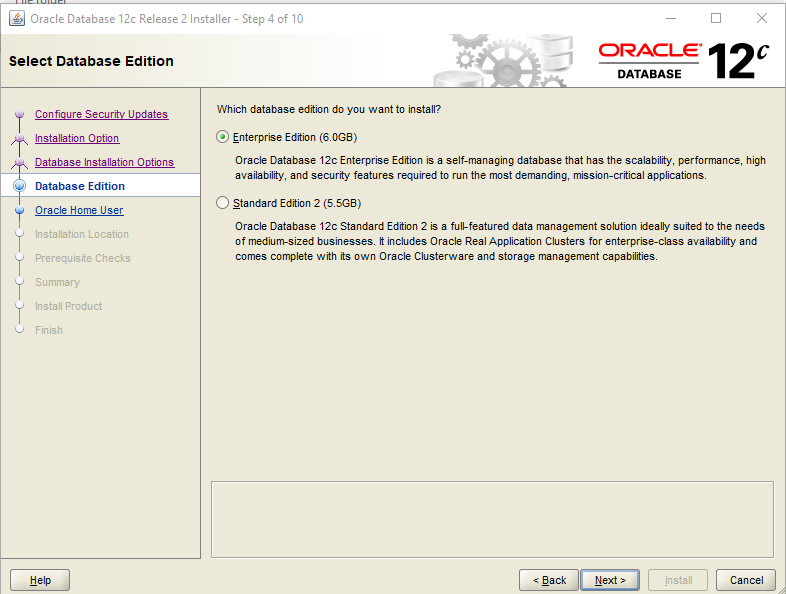

Ensure you select Enterprise Edition. If you use Standard Edition, you will face errors in Database import due to missing Features during product database import.

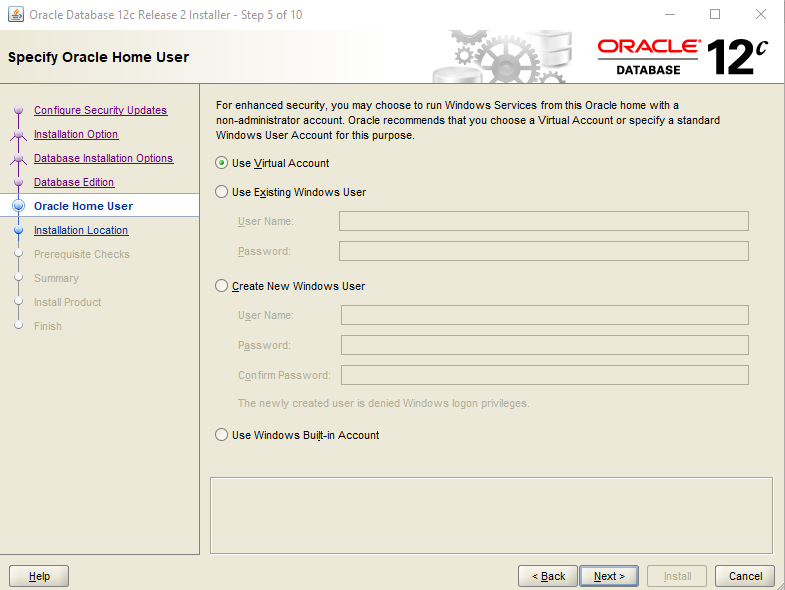

Select Use Virtual account

Please not that the software location would be dbhome_1, dbhome_2 in below screenshot is to be ignored.

Continue with Next option on further steps and complete the installation.

Creating hibernate folder

Create ‘hibernate’ folder in 'C:/c2m' folder. Copy the below jar files to this location. Not specifying the location for downloading these files as they are generic files available for download. Download from your desired location. Just ensure that the version numbers match.

• ehcache-core-2.4.3.jar
• hibernate-commons-annotations-4.0.1.Final.jar
• hibernate-core-4.1.0.Final.jar
• hibernate-ehcache-4.1.0.Final.jar
• hibernate-jpa-2.0-api-1.0.1.Final.jar
• javassist-3.15.0-GA.jar
• jboss-logging-3.3.0.Final.jar
• jboss-transaction-api_1.1_spec-1.0.0.Final.jar

Setting System variables

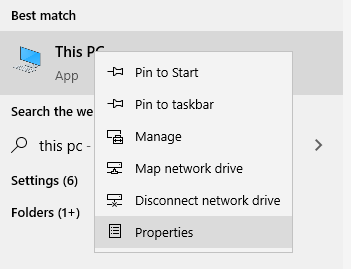

Right Click on This PC and open properties

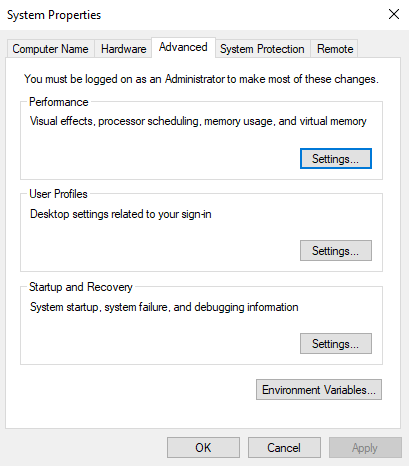

Go to Advanced system settings

Click on Environment Variables

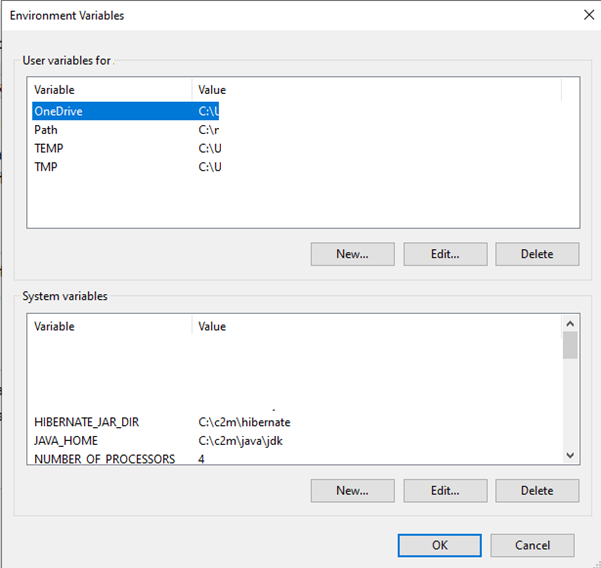

Create the following System variables

• HIBERNATE_JAR_DIR - C:\c2m\hibernate
• JAVA_HOME - C:\c2m\java\jdk
• ORACLE_CLIENT_HOME - C:\app\virtual\product\12.2.0\dbhome_1

Append the following paths to the existing PATH system variable
C:\c2m\java\jdk\bin;C:\c2m\java\jdk\lib;C:\app\virtual\product\12.2.0\dbhome_1\bin;%ORACLE_CLIENT_HOME%\perl\bin

This completes the first part of C2M installation. All necessary prerequisite softwares have been downloaded and installed.

Click on below link to go to next part

Part II - Download and Installation of C2M product
